Run a Document fetch check (API)

This developer guide takes you through the steps to run a Document fetch check in the PassFort API 4.0 to confirm whether an individual's proof of identity document is valid.

This check can be run on the Verify identity task (INDIVIDUAL_VERIFY_IDENTITY) or the Verify address task (INDIVIDUAL_VERIFY_ADDRESS).

If you'd like to use this check on the Verify address task, you should ensure that:

  1. The documents provided contain proof of address as well as proof of identity (e.g. a driver's license).
  2. Your data provider extracts addresses from documents.
It's not possible to run a variant of this check with Onfido on the Verify address task because Onfido does not extract the individual’s address from the document. For more information about how Onfido handles this check, see Onfido's documentation.
To learn which document types are supported, see the configuration article for your data provider.

With this check, you collect the document from the customer via the data provider's SDK or embedded webpage. If you'd like to upload the document directly to the profile, use the Document verification check instead.

Where possible, we recommend using the Document fetch check instead of Document verification because it also enables you to use any services the data provider is offering to check the quality of users' photos of documents. Contact your data provider to find out what services they offer.

In the portal, the name of the Document fetch check is ID verification (service collects documents).

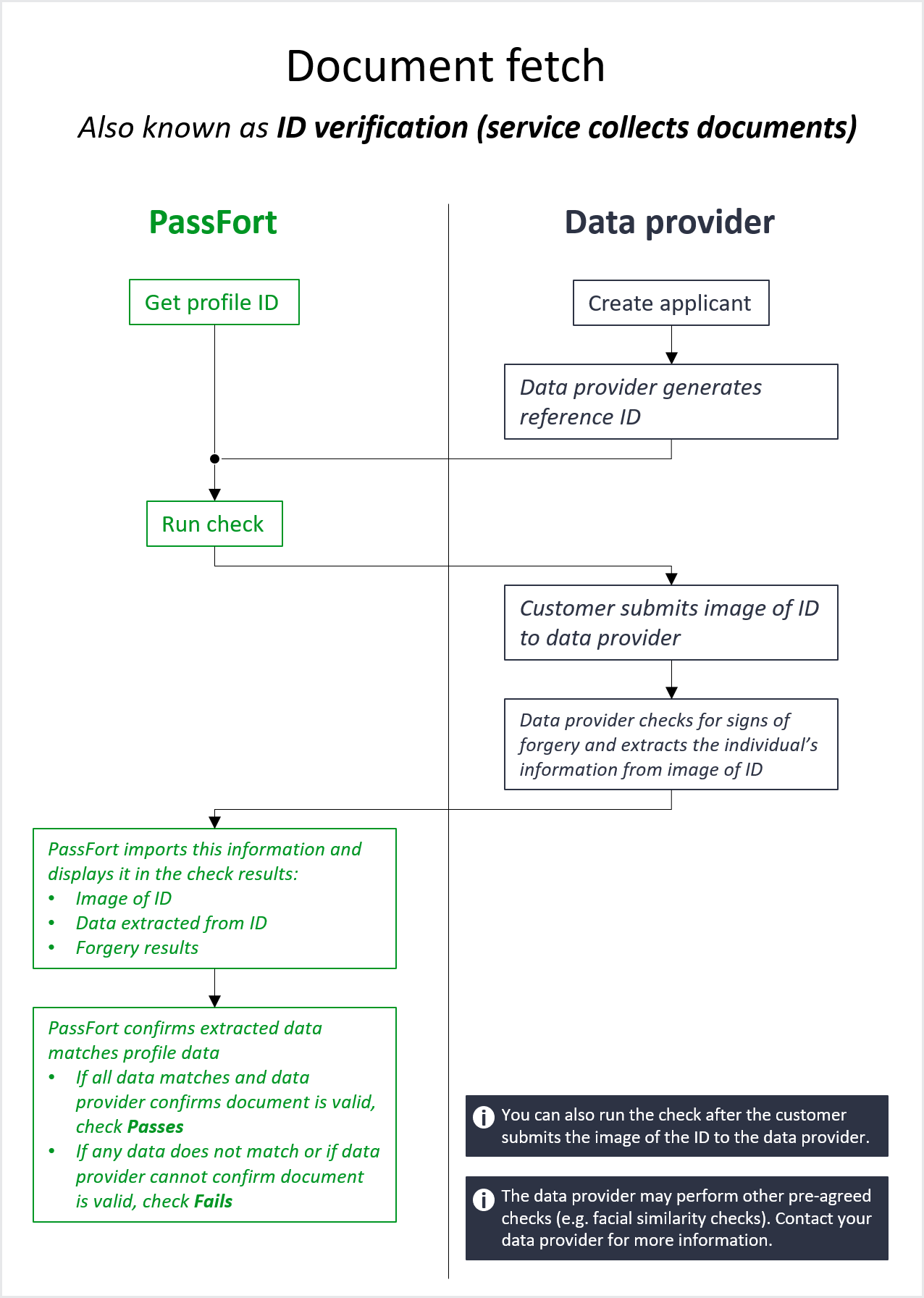

What the process looks like

Most of the action you take for the Document fetch process happens in PassFort.

In PassFort, get the profile ID and run the check. The results are displayed in PassFort.

The only action you need to take with the data provider is to create the applicant.

This guide shows you how to perform these steps.

Before you begin

Implement your data provider's SDK or embedded webpage

This guide assumes you've already implemented your data provider's SDK or embedded webpage so your customer can send their identity documents.

For more information about implementing your data providers' services, see their guides:

For help getting TRUSTDOCK's Identity Verification API guides, speak to your TRUSTDOCK account manager.

If you're using PassFort as a reseller for Onfido checks, confirm your configuration is correct

When you're using PassFort as a reseller, use the Policy Builder to confirm the check variant and task variant have the right configuration options.

To change your configuration options, contact us.

To see the Policy Builder, you need to have Read only access for the Smart policies permission.
If you have a direct agreement with your data provider, you don't need to perform these steps.

Confirm the check variant is a default check:

  1. Go to the Policy Builder > Check configuration.
  2. Click ID verification (service collects documents) check.
  3. Confirm Is default check is selected.

Confirm the task variant is a default task that has the check as an acceptance check:

  1. Go to the Policy Builder > Tasks.
  2. Click the Verify address or Verify identity task.
  3. Confirm Is default task is selected.
  4. Confirm the ID verification (service collects documents) check is listed as an Acceptance check.

1. Get the profile's ID and confirm it has the required keys and values

You should choose a profile for the check and get the profile ID (more information below).

Once you have the profile ID, you can make sure it has the required fields (documented below) for the Document fetch check to run successfully.

Get the profile's ID

Document fetch checks are always run on profiles with the INDIVIDUAL entity type.

Choose an individual profile to run the check on, and take note of the profile's ID number (e.g. a2c4393a-e219-67a4-5ab4-2186952e9038). You'll need it to run the check later.

If you haven't created the profile yet, follow the steps to create an individual profile via the API.
You can also create a profile via the portal. To get the profile ID, view the profile in the portal and copy the string of letters and numbers after /onboarding/ in the URL.

Confirm the profile has the required fields for the check

To see all data on the profile, make a request to the following endpoint.

Request endpoint:

GET https://api.passfort.com/4.0/profiles/{profile_id}

In this example, data is returned for an individual profile named "Alex Wheeler". The profile has the Verify identity and Verify address tasks.

Sample response:

{
"applications": [ … ],
"category": "APPLICANT",
"checks": [ ],
"collected_data": {
"entity_type": "INDIVIDUAL",
"address_history": [
{
"address": {
"type": "STRUCTURED",
"country": "GBR",
"locality": "London",
"original_freeform_address": "Crown, 38, Street, London, W1 2ZT",
"original_structured_address": { … },
"postal_code": "W1 2ZT",
"route": "Street",
"street_number": "38",
"subpremise": "Crown"
}
}
],
"contact_details": { },
"personal_details": {
"dob": "1975-04-19",
"name": {
"family_name": "Wheeler",
"given_names": [
"Alex"
]
},
"national_identity_number": { },
"nationality": "GBR"
}
},
"collection_steps": [ ],
"creation_date": "2019-10-03 13:48:16",
"display_name": "Alex Wheeler",
"document_images": [ ],
"events": [ ],
"has_associates": false,
"has_collection_steps": false,
"id": "a2c4393a-e219-67a4-5ab4-2186952e9038",
"linked_to": [ ],
"role": "INDIVIDUAL_CUSTOMER",
"root_id": "6bba3592-d9de-1ee5-8e97-ba8d8d13c558",
"status": "NORMAL",
"tags": [ ],
"task_progress": { … },
"task_types": [
"INDIVIDUAL_VERIFY_IDENTITY",
"INDIVIDUAL_VERIFY_ADDRESS"
],
"tasks": [
{
"check_ids": [ ],
"creation_date": "2019-10-03 13:48:16",
"form_instance_ids": [ ],
"id": "3d7a333c-418d-72a1-007b-06854dbb28eb",
"is_complete": false,
"is_expired": false,
"is_skipped": false,
"state": "INCOMPLETE",
"type": "INDIVIDUAL_VERIFY_IDENTITY",
"variant": {
"alias": "verify_identity",
"id": "ddc72ea7-6e45-cc3b-dc52-30a94b9ec8c2",
"name": "Verify identity",
"task_type": "INDIVIDUAL_VERIFY_IDENTITY"
}
},
{
"check_ids": [ ],
"creation_date": "2019-10-03 13:48:16",
"form_instance_ids": [ ],
"id": "72aadb55-8b02-8495-d6b0-e1627ec23612",
"is_complete": false,
"is_expired": false,
"is_skipped": false,
"state": "INCOMPLETE",
"type": "INDIVIDUAL_VERIFY_ADDRESS",
"variant": {
"alias": "verify_address",
"id": "5562c4e4-4d12-b16a-a151-7c9eed6816e9",
"name": "Verify address",
"task_type": "INDIVIDUAL_VERIFY_ADDRESS"
}
}
],
"unresolved_event_types": [ ]
}

Use the response to:

  1. Confirm the profile has the type of task you want to run the check on. To run this check on the Verify address task, the profile must have a task with the INDIVIDUAL_VERIFY_ADDRESS type. To run this check on the Verify identity task, the profile must have a task with the INDIVIDUAL_VERIFY_IDENTITY type.
  2. Take note of the corresponding task ID (tasks.id). Use the corresponding task alias (tasks.variant.alias) to confirm that you're looking at the right task. If there is more than one task with the same alias (which happens when a task has more than one version), use the task with "is_expired": "false". Note that the task variant ID (tasks.variant.id) won't be used to run this check, so you don't need to take note of it.
  3. Confirm the profile has data for these required keys, which are stored in the collected_data object:
    1. personal_details.name.given_names: The individual's first and (if applicable) middle names.
    2. personal_details.name.family_name: The individual's surname.
    3. personal_details.dob: The individual's date of birth. Note that this field is only required by Onfido and Jumio Netverify.
    4. address_history: An array of objects containing the individual's addresses. Note that this field is only required by TRUSTDOCK and GBG IDscan when you're running the check on the Verify address task and by Jumio Netverify (all tasks).

If the required fields do not exist on the profile or do not contain valid data, the check will return an error when you try to run it in step 3.

To learn how to add/update the fields in the profile's collected_data, see Update PassFort's profile data.

The reference is also a required field. We'll get it in the next step.
To learn which optional profile fields can be used for this check and to learn about configuration options like the Check nationality option, see the article for your data provider: Onfido, Jumio Netverify, GBG IDscan, TRUSTDOCK Identity Verification API.

2. Get the data provider's reference ID for the document

When the data provider collects the customer's documents, they create a reference ID.

Jumio Netverify calls this a scanReference, Onfido calls this an applicant ID, GBG IDscan calls this a Journey Definition ID, and TRUSTDOCK calls this an Identity Verification ID.

You should get this ID so you can send it in the request to run the check.

If you have a direct agreement with your data provider, you can improve the efficiency of the process by getting the data provider's reference ID at the same time as you create the profile in PassFort.

Jumio Netverify

For more information about getting the scanReference, see Jumio's documentation.

Onfido (direct agreement)

For more information about getting the applicant ID, see Onfido's documentation:

Onfido (checks resold by PassFort)

If you're using PassFort as a reseller, make a single call to the endpoint below to create an applicant and generate an Onfido SDK token.

The Onfido token expires after 90 minutes, so you must run the Document fetch check within that time. If your token has expired, make another request to the endpoint below and run the Document fetch check again.
The Onfido SDK token is a JWT token.

Request endpoint:

POST https://api.passfort.com/4.0/profiles/{profile_id}/integrations/onfido_tokens

Body parameters:

When you make the POST request, include the following parameters in the body.

Key

Value

Description

token_type

Required

String

DOCFETCH

The type of token request.

referrer

Required for web SDK

String

Sample: http://localhost:3000/*

The URL of the webpage where the Onfido web SDK will be used.

application_id

Required for the iOS or Android SDK

String

Sample: ABCDE12345.com.your-company.example

Your Android or iOS application ID.

You should not send a referrer and application_id in the same request.

In this example, we'll send the request for the web SDK.

Sample request body:

{
"token_type": "DOCFETCH",
"referrer": "http://localhost:3000/*"
}

Sample response:

{
"onfido_applicant_id": "3d7b7010-d5ca-dab1-d7c0-01e4ada9b534",
"sdk_jwt": "0TUmKi8NZVCLFqXpRDCF.yPN04BFBA2mbSeKhAl8dUzF10FjPsu1Cn9ESJrkMSjubjIz7nOeGV2JG8LycDowsEMPkE5",
"token_type": "DOCFETCH"
}

Use the response to:

  • Take note of the applicant id (onfido_applicant_id). You'll need to send it as the reference when you run the check.

GBG IDscan

For more information about getting the JourneyDefinitionID, see GBG IDscan's documentation.

TRUSTDOCK Identity Verification API

For more information about getting the Identity Verification ID, speak to your TRUSTDOCK account manager.

PassFort only supports the following TRUSTDOCK plans: 1) Act on Prevention of Transfer of Criminal Proceeds (e) Plan; 2) Personal Identity Verification Plan.
Verifying 2 documents with a single reference ID

It is possible to verify 2 documents with a single Identity Verification ID. This can be done when the reference to one document is in the records.document.id_document TRUSTDOCK field and the other is in records.document.individual_number_document TRUSTDOCK field.

When you get the check result from PassFort, it will contain:

  • All the images and text data present in the record.
  • The plan_id, plan_name, review_date, reviewer_id_1, and reviewer_id_2 associated with the submitted record (not each document).
  • The document_type and extracted data for the TRUSTDOCK id_document. This information is not returned for the individual_number_document.
An integration error will be turned if there is not an id_document present in the record or if more than 1 record is returned.

3. Run the check

Now that you have the profile ID and reference ID, you can run the check and get the results.

Run the check

Request endpoint:

POST https://api.passfort.com/4.0/profiles/{profile_id}/checks
By default, the Document fetch check will run asynchronously. You can send mode as a query parameter to run the check synchronously. Note that if a response is not received from the data provider within 120 seconds, the mode will switch to asynchronous automatically, so you should always support asynchronous checks. Speak to your data provider to see if they guarantee a check response within 120 seconds.

Body parameters:

When you make the POST request, include the following parameters in the body.

Key

Value

Description

check_type

Required

String

DOCUMENT_FETCH

The type of check that's being run.

source

Required

String

JUMIO, ONFIDO , or GENERIC (used for GBG IDscan and TRUSTDOCK)

The data provider.

reference

Required

String

Sample value: 6bba3592-d9de-1ee5-8e97-ba8d8d13c558

The reference ID the data provider is using for the document.

category

Optional (but we recommend including it whenever possible)

String

PROOF_OF_ADDRESS or PROOF_OF_IDENTITY

In the case of Onfido, you should always send the category as PROOF_OF_IDENTITY because they Onfido only supports identity documents.

The category of the document. You should send PROOF_OF_ADDRESS when the check is run on the Verify address task and PROOF_OF_IDENTITY when the check is run on the Verify identity task.

When the category is PROOF_OF_ADDRESS, part of the pass criteria of the check is that the address extracted from the document must match the address in the profile.

If you do not send this key, PassFort uses the PROOF_OF_IDENTITY category.

task_ids

Optional

String

Sample value: 72aadb55-8b02-8495-d6b0-e1627ec23612

Array of strings where each string is a unique identifier for a task the check will run on.

If you're using Onfido, you can run the check on the Verify identity task.

If you're using Jumio Netverify or GBG IDscan, you can run the check on the Verify identity and/or the Verify address task.

While this key is optional, we strongly recommend including it in your request.

If you do not send this key, PassFort runs the check on the Verify identity task.

variant

Optional (but we recommend including it whenever possible)

Object

For a sample value, see the sample request body below.

Object to indicate which variant of the check will run.

variant.alias

Required

String

This key is optional if variant.id is provided, but we recommend sending the alias whenever possible.

Sample value:

default

The check alias.

variant.id

Required

String

This key is optional if variant.alias is provided.

Sample value:

ea70ade9-3de3-1785-203b-68044cd3ecbb

The unique identifier for the check.

In the example below, we'll run the check with Jumio Netverify as the data provider.

Sample request body:

{
"check_type": "DOCUMENT_FETCH",
"source": "JUMIO",
"reference": "3d7b7010-d5ca-dab1-d7c0-01e4ada9b534",
"category": "PROOF_OF_IDENTITY",
"task_ids": [
"72aadb55-8b02-8495-d6b0-e1627ec23612"
],
"variant": {
"alias": "default"
}
}

Sample response:

{
"check_type": "DOCUMENT_FETCH",
"source": "JUMIO",
"id": "a2c4393a-e219-67a4-5ab4-2186952e9038",
"reference": "3d7b7010-d5ca-dab1-d7c0-01e4ada9b534",
"category": "PROOF_OF_IDENTITY",
"input_data": {
"address_history": [ … ],
"entity_type": "INDIVIDUAL",
"personal_details": { ... },
"nationality": "GBR"
},
"instructed_on": "2019-11-05 17:01:13",
"performed_on": "2019-11-05 17:01:13",
"started_on": "2019-11-05 17:01:13",
"deadline": "2019-11-08",
"providers": [ … ],
"state": "RUNNING",
"task_ids": [
"3d7a333c-418d-72a1-007b-06854dbb28eb"
],
"variant": { … }
}

This check often takes a bit of time to run, so the check state will likely be RUNNING in the response. See the next step to learn how to get the check result as soon as it comes back from the data provider.

Get the check result

Listen to the Check completed webhook to get a notification when the check is finished running and learn what the result is.

This webhook sends a payload whenever results are returned from any check (including checks other than the Document fetch check).

Payloads from this webhook have these important keys:

  • secret: Authenticate the request by ensuring this secret matches your secret.
  • id: The check ID. Use it to confirm the payload is for your check by matching it to the check ID you captured in step 1.
  • check_type: The type of check that was run. When the Document fetch check was run, the value is DOCUMENT_FETCH.
  • variant.alias: The alias for the check variant. You can use it for additional confirmation that the payload is for your check by matching it to the check variant alias you captured in step 1.
  • result: The value for this key indicates the result of the check. Possible results for the Document fetch check are Pass, Fail, or Error. To learn what triggers each result, see the configuration article for your data provider: Jumio Netverify, Onfido, GBG IDscan.
When the check results are returned from the data provider, PassFort cross-references the information from individual’s collected_data with the information returned from the data provider to ensure it matches. This means it's possible for the data provider to pass the check and for PassFort to fail the check.

In this example, a Document fetch check run with Jumio Netverify passed.

Sample payload:

{
"id": "33bae6b8-5689-b96b-143c-06e93ab8527e",
"event": "CHECK_COMPLETED",
"secret": "yourSecret",
"timestamp": 1573048450,
"data": {
"check": {
"check_type": "DOCUMENT_FETCH",
"id": "ea565b55-47d9-1858-4588-3a22a3838707",
"result": "Pass",
"variant": {
"alias": "jumio_service_collects",
"id": "ea70ade9-3de3-1785-203b-68044cd3ecbb",
"name": "Jumio"
}
},
"customer_ref": null,
"profile_id": "a2c4393a-e219-67a4-5ab4-2186952e9038"
}
}

Use the response to:

Confirm the check has passed:

  • If the check has passed, data.check.result is Pass.
  • If the check hasn't passed, data.check.result is Fail.
  • If an error occurred, data.check.result is Error.

See the next step to learn what forgery or image checks the data provider performed, what information the data provider extracted from the document, any error or failure details, and more.

Getting more information about the check result

If you want to get more information about the results from the webhook, make a call to the endpoint below.

In the request body, include the check ID (check.id) and the profile ID (data.profile_id) from the webhook payload.

We recommend listening to the Check completed webhook to find out when the check is finished because it's more efficient than continuously polling the endpoint below.

Request endpoint:

GET https://api.passfort.com/4.0/profiles/{profile_id}/checks/{check_id}

In this example, the Document fetch check passed.

Sample response:

{
"check_type": "DOCUMENT_FETCH",
"completed_on": "2019-11-05 17:01:14",
"decision": "PASS",
"errors": [ ],
"id": "edc23993-eb6a-9d89-bb79-5b8925b33224",
"input_data": {
"address_history": [
{
"address": {
"type": "STRUCTURED",
"country": "GBR",
"locality": "London",
"original_freeform_address": "Crown, 38, Street, London, W1 2ZT",
"original_structured_address": { ... },
"postal_code": "W1 2ZT",
"route": "Street",
"street_number": "38",
"subpremise": "Crown"
}
}
],
"entity_type": "INDIVIDUAL",
"personal_details": {
"dob": "1975-04-19",
"name": {
"family_name": "Wheeler",
"given_names": [
"Alex"
]
},
"nationality": "GBR"
}
},
"instructed_on": "2019-11-05 17:01:13",
"output_data": {
"documents": [
{
"category": "PROOF_OF_IDENTITY",
"document_type": "PASSPORT",
"id": "bdb87a86-bd8d-6d83-b976-e114959a38d9",
"extracted_data": {
"expiry": "2024-01-01",
"issuer": "Manual check",
"issuing_country": "GBR",
"mrz1": "P<GBRWHEELER<<ALEX<DARCY<<<<<<<<<<<<<<<<",
"mrz2": "0847623927GBR7504194M2401014<<<<<<<<<<<<<<08",
"number": "16CK123456",
"personal_details": { … }
},
"images": [
{
"id": "913c68e8-c246-463d-b59b-78c4444647b9",
"image_type": "FRONT",
"upload_date": "2019-11-06 13:54:05"
}
],
"verification_result": {
"all_passed": true,
"document_type_passed": true,
"field_checks": [ … ],
"field_checks_passed": true,
"forgery_checks": [ … ],
"forgery_checks_passed": true,
"image_checks": [ … ],
"image_checks_passed": true,
"provider_name": "Jumio"
}
}
],
"entity_type": "INDIVIDUAL"
},
"performed_on": "2019-11-05 17:01:13",
"providers": [
{
"instructed_on": "2019-11-06 13:54:05",
"provider_name": "Jumio Netverify",
"variant_name": ""
}
],
"reference": "3d7b7010-d5ca-dab1-d7c0-01e4ada9b534",
"result": "Pass",
"source": "JUMIO",
"started_on": "2019-11-05 17:01:13",
"state": "COMPLETE",
"task_ids": [ ],
"variant": {
"alias": "jumio_service_collects",
"id": "5562c4e4-4d12-b16a-a151-7c9eed6816e9",
"name": "Jumio"
}
}

The output_data.documents.verification_result object that's returned in the response contains some key information about the check result:

  • all_passed: When all the image, forgery, and field checks have passed, the value of this field is true. When one or more checks have failed, the value of this field is false.
  • document_type_passed: When the correct document_type was used, the value of this field is true. If an incorrect document_type was used, the value of this field is false.
  • error_reason: This field contains a description about why the check returned an error.
  • field_checks: This array of objects contains one object for every profile field that was cross-referenced with the information extracted from the data provider.
  • forgery_checks: This array of objects contains one object for every forgery check performed by the data provider, along with a detailed result for each one.
  • forgery_checks_passed: When all forgery checks performed by the data provider passed, the value of this is true. When one or more forgery checks failed, the value of this field is false.
  • image_checks: This array of objects contains one object for every image check performed by the data provider, along with a detailed result for each one.
  • image_checks_passed: When all image checks performed by the data provider passed, the value of this field is true. When one or more image checks failed, the value of this field is false.
  • provider_name: The name of the data provider.

For a description of every field that might be returned in the response, see the API Resources for Get results of a specific check.

Onfido mapping

If you're using Onfido, the documents.document_type field maps as follows:

Onfido document type

PassFort document_type

driving_license

DRIVING_LICENSE

passport

PASSPORT

passport_card

PASSPORT

national_identity_card

STATE_ID

voter_id

VOTER_ID

national_health_insurance_card

HEALTHCARE_ID

tax_id

TAX_ID

residence_permit

BIOMETRIC_STATE_ID

visa

VISA

TRUSTDOCK Identity Verification API mapping
If you have a login, you can learn more about the TRUSTDOCK fields in their API documentation.

If you're using the TRUSTDOCK Identity Verification API, the documents.document_type field maps as follows:

TRUSTDOCK document type

PassFort document_type

passport

PASSPORT

health_insurance_card

HEALTHCARE_ID

drivers_license

DRIVING_LICENSE

driving_history_certificate

MISCELLANEOUS

individual_number_card

STATE_ID

residence_card

RESIDENCE_ID

basic_resident_registration_card

RESIDENCE_OTHER

special_permanent_resident_certificate

RESIDENCE_OTHER

If you're using the TRUSTDOCK Identity Verification API, the documents.verification_result.provider_information array maps as follows:

TRUSTDOCK name

PassFort provider_information

verified_by

reviewer_id_1

verified_by

reviewer_id_2

plan.id

plan_id

plan.name

plan_name

If you're using the TRUSTDOCK Identity Verification API, the documents.verification_result.review_date field maps to the verified_at field in TRUSTDOCK.

If you're using the TRUSTDOCK Identity Verification API, the documents.verification_result.forgery_checks object maps as follows:

TRUSTDOCK reason code

Passfort forgery_checks.category

Passfort forgery_checks.type

address_is_not_specified

Security checks

Address specified

contains_individual_number

Document validation

Does not contain MyNumber

expired

Document validation

Document has not expired

mismatched_data

Document validation

Input data matching

missing_address

Document validation

Address present

missing_issuer

Document validation

Document issuer present

other

Security checks

Other

wrong_document

Document validation

Document is supported

If you're using the TRUSTDOCK Identity Verification API, the documents.verification_result.image_checks object maps as follows:

TRUSTDOCK reason code

Passfort image_checks.category

Passfort image_checks.type

blurred

Image quality

Image integrity: blurred

copy_or_scanned_data

Security checks

Visual authenticity: original document present

failed_randomness_check

Security checks

Liveness overall result

mismatched_face

Security checks

Face matching

missing_thickness

Image quality

Image integrity: thickness

no_face

Security checks

Visual authenticity: face detection

not_human

Security checks

Liveness: actions performed by a human

out_of_frame

Image quality

Image integrity: document capture

partly_hidden

Image quality

Image integrity: document fully visible

Now that you have the results of the check, you may want to mark the task as complete.


How did we do?


Powered by HelpDocs (opens in a new tab)
